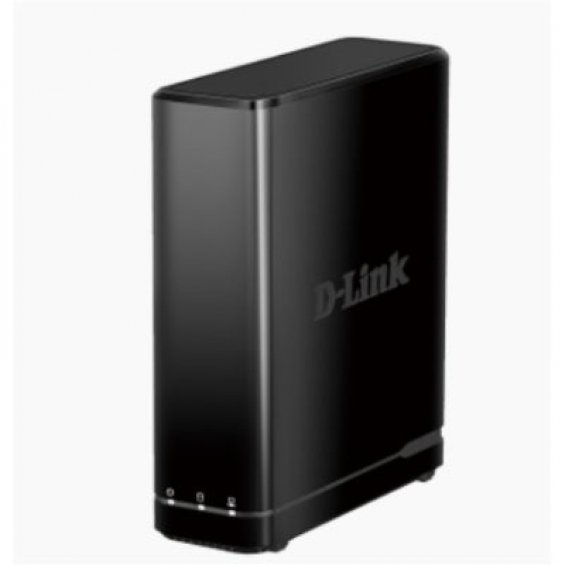

Sistemas de vigilancia D-Link videograbador DNR-312L NVR de 9 canales en red 1 bahía

DNR-312L

Estandars
- IEEE 802.3/u/z
- Auto MDI/MDI-X
- SATA I, II, III
HDD1
- Reformat Disk
- Hasta 6 TB HDD
- EXT3 file system
2 Reset Modes
- Reset firmware GUI button
- HW reset button (hold for 10 seconds)
Botón reset
- Reset to factory default
Flash ROM:  128 MB-
RAM:  1024MB DDR III
Network Interface
- Gigabit Ethernet LAN port (10/100/1000 Mbps)
I/O Ports
- RJ-45 port
- DC-in jack
- HDMI
- 2 x USB 2.0 port (Mouse, UPS, Flash Disk, HDD with external power)
- 3.5mm audio input x 1, output x 1
- Power Adapter- DC 12 V/3 A-
OS
- Linux
Cámaras soportadas
- Soporta todas las cámaras en red D-Link con resolución megapixel
Requisitos para interface Web
- Browser: Internet Explorer, Firefox, Chrome, or Safari-
Rendimiento de grabación:
- First video profile:
  H.264 at 720p at 270 fps or 1080p at 135 fps
- Secondary video profile:
  H.264 at VGA at 135 fps
Búsqueda de cámara: UPnP
Grabación audio y vídeo
- Synchronised audio & video recording
Compresión
- H.264, MPEG-4, M-JPEG-
Video Setting
- Resolution, quality, frame rate, enable audio, go to camera interface
Tipo grabación
- Record by schedule, manual, and event-based recording
- Motion-triggered recording
Visión remota
- Soporta mydlink™ View-NVR mobile app para iOS y Android
- Soporta portal mydlink™
- Soportado via browser
Control visión remota
- Live view, preset/go, patrol, focus, PTZ functions, snapshot, full screen, digital zoom-
- e-map
Control reproducción remota
- Playback with normal, fast forward/rewind and step forward/rewind
Reproducción remota
- Soportado via browser y cliente NVR
- Playback system with timeline GUI, search by event, area, cameras, date, and time
- Browser or NVR Remote Client support four channel simultaneous playback
- Digital zoom
Overwrite Recording
- Auto recycling when disk storage is full
File Export
- Local : Export videos to AVI
- Remote: Export videos to AVI or ASF file
- Export images to BMP or JPG file
User Account
- Additional accounts can be created to allow users system access and specify authorisation for camera channels, PTZ
DDNS- -
- D-Link DDNS and DynDns server support
System Time
- Set the system time (D-Link NTP, input time, sync with computer, Daylight Saving Time)
Remote Backup
- Remote backup software can backup raw data to redundant storage
System Status
- Camera status
- Still picture EMAP support
- System status
Network Service Protocols
- IPV4, ARP, TCP, UDP, ICMP
- DHCP Client
- NTP Client
- DNS Client
- DDNS Client
- SMTP Client
- FTP Client
- HTTP Server
- IP filtering
- UPnP
- HTTPS
User Interface
- HTTP Web browser
- mydlink™ portal
- Smart phone
- NVR Search utility

Accesorios incluidos
- mydlink™ Network Video Recorder with HDMI
- Power Adapter
- Ethernet Cable
- Quick Installation Guide
- CD-ROM with:
  Software
  Product Documentation
- Peso: 0.425 kg
- Consumo: 30 W
Temperatura
- Operating: 0 to 40 ˚C (32 to 104 ˚F)
- Storage: -20 to 70 ˚C (-4 to 158 ˚F)
Humedad
- 5% to 90% non-condensing
Certificationes
- CE
- FCC
- RoHS
- BSMI
Dimensiones
- 141.6 x 49.8 x 173 mm
